Unmanned Ball-Picking Setup
Extended-RangeOption
Max Mowing Area (Extended Range):260,000 m²/65 acres
Smart Path Planning
Multi-Field Mowing
Fleet Management
Auto/Manual Mode & Remote Control
Remote App Monitoring & Control
The FJD Z42P is a professional mowing robot designed for golf driving ranges and turf farms, combining efficient mowing and ball picking in one robot. Equipped with advanced navigation technology, it enables precise unmanned mowing and fast ball collection, significantly reducing labor costs and boosting efficiency. Paired with the FJD RTK tech, it can operate smoothly even in RTK-challenging areas like under trees. The FJD Z42P offers a smart and cost-effective solution for professional turf management, making lawn care easier and more efficient.
The mower is equipped with our RTK technology to perform unmanned operations even in areas with no satellite signal, such as under trees or near tall buildings
Monitor the mowing status on the tablet and keep yourself away from heat, noise, and dust.

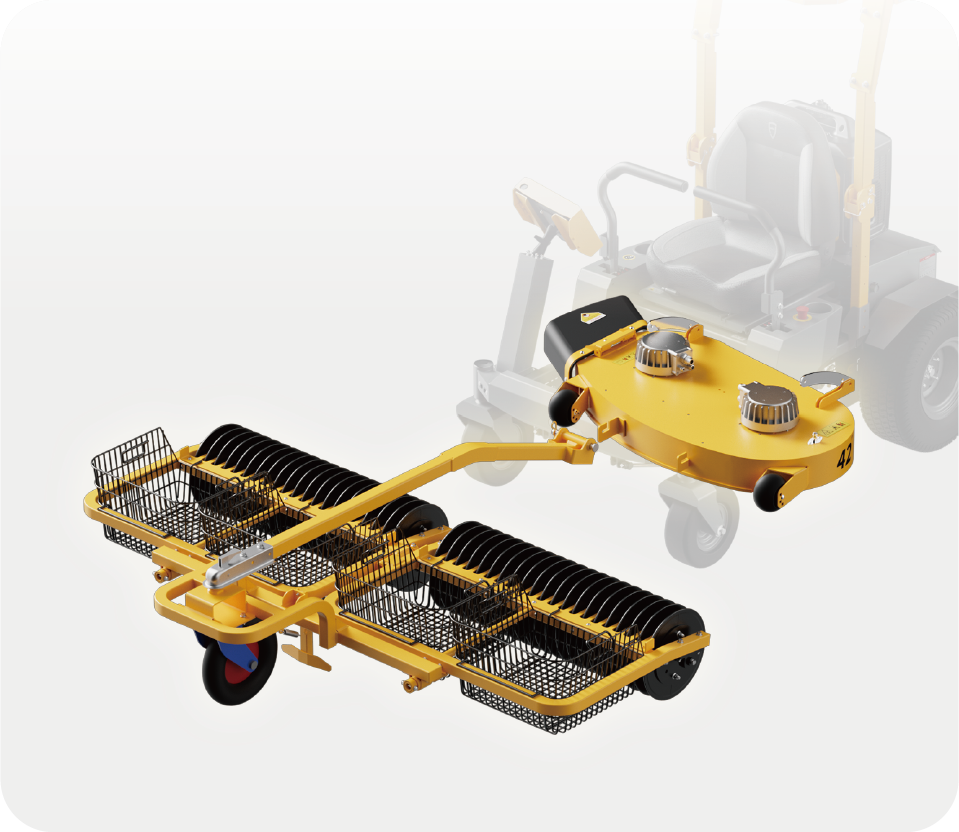

Multi-Functional Chassis with Front and Rear Mounting
100% Electric for Zero Emissions
Quick Battery Swap for 24/7 Operation

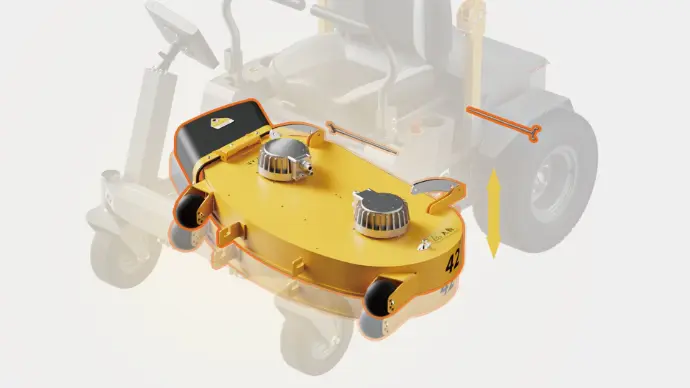

Adjustable Electric Deck
Manual Brake Release

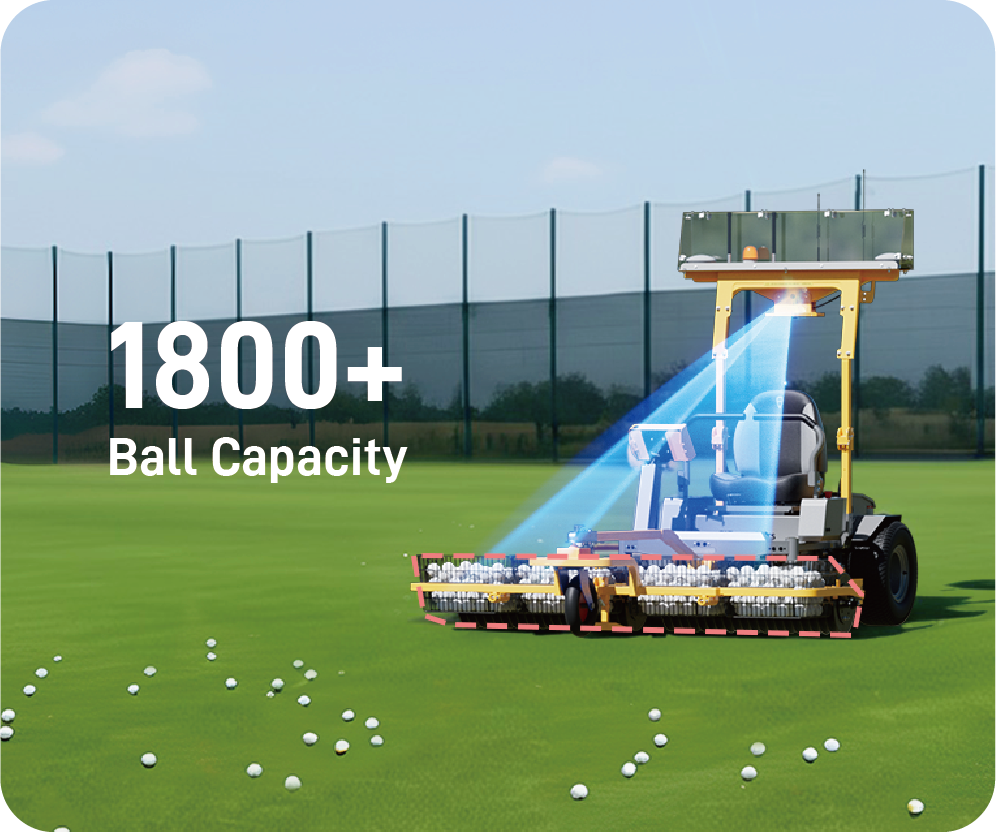

The FJD Z42P offers a professional 2-in-1 mowing and ball-picking solution for golf driving ranges. It supports custom routes, cloud-based mapping, and automatic full-basket detection, making course operations smarter and more efficient.
The FJD Z42P offers a professional mowing solution for turf farms, supporting hybrid configurations and fleet management to ensure long-lasting power and high efficiency, significantly reducing operational costs and making turf maintenance easier.

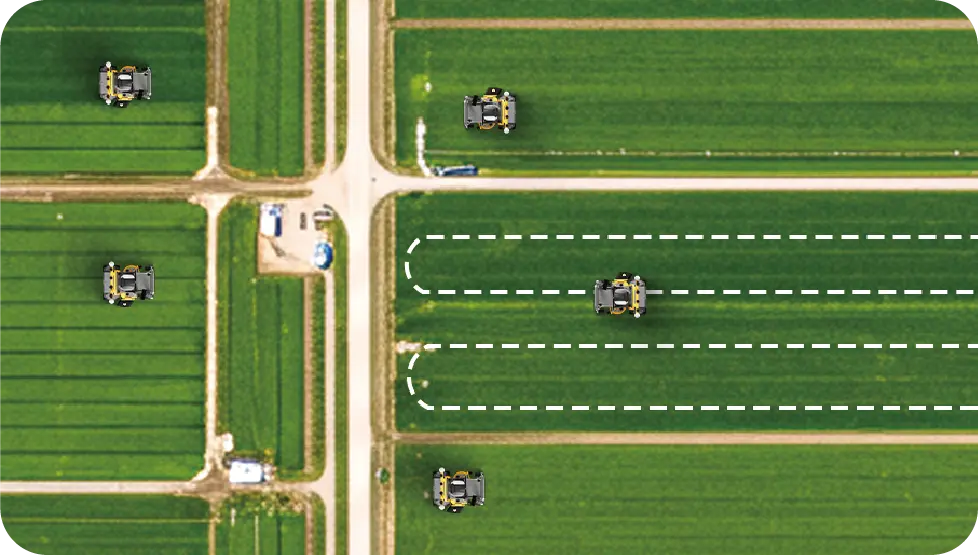

Support multiple units working together

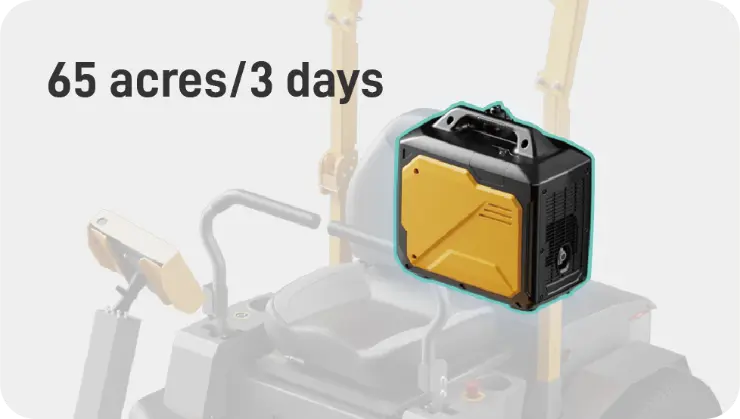

Cover up to 65 acres in 3 days
| QUICK SPECS | |||
|---|---|---|---|
|
Dimensions (L * W * H)
|
5.36 * 4.28 * 7.46 (ft)
1635 * 1305 * 2273 (mm)
|
||
|
Weight
|
738 lb ±11lb (335 ±5kg)
|
||
|

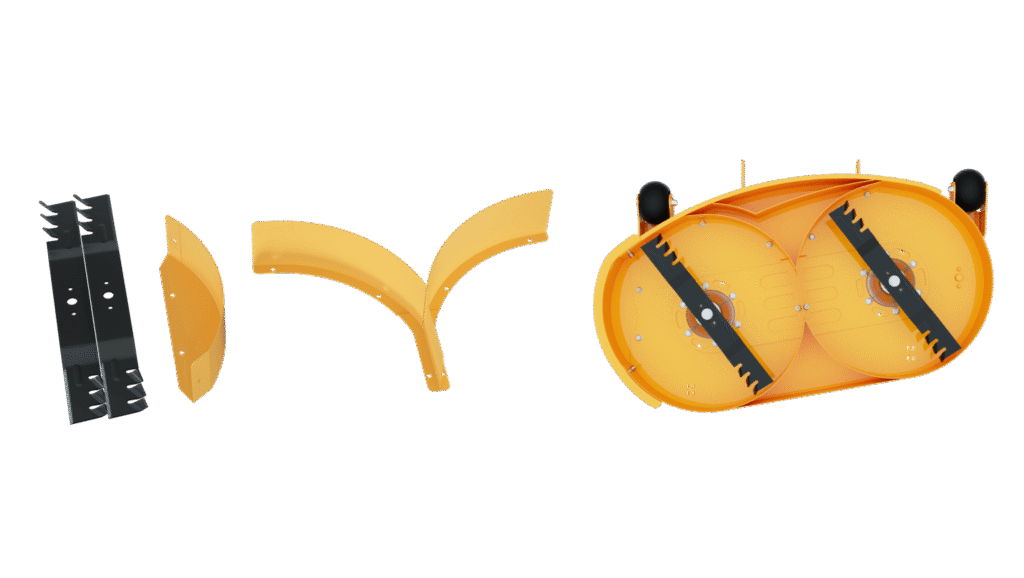

Number of Blades
|
2 |
||
|
Cutting Height
|
1.2”–5.0” (30–127 mm)
|
||
|
Max Working Area ( Per Full Charge )
|
6 acres (24,281 ㎡)
|
||
|
Battery Capacity
|
6.79 kWh
|
||
|
Ground Speed
|
7.46 mph (12 km/h) max
|
||
|
Ground Ability
|
Gradeability: 20° ; Parking: 16.7°
|
||
|
Max Distance of Remote Control
|
2,624 ft (800 m)
|
||
|
Operation Modes
|
Manual , Remote Control , Autonomous
|
||
|
RTK Frequency
|
GPS L1/L2 ; BDS B1/B2/B3 ;
Galileo E1/E2/E5a/E5b ;
GLONASS L1/L2
|
||
|
Certifications
|
CE/FCC/SGS – North America
|
||
