Quick and Easy Mapping
Easy Configuration
Swappable Battery
for All-Day Operation
Multi-Robot Fleet Capability
& Multi-Field Management

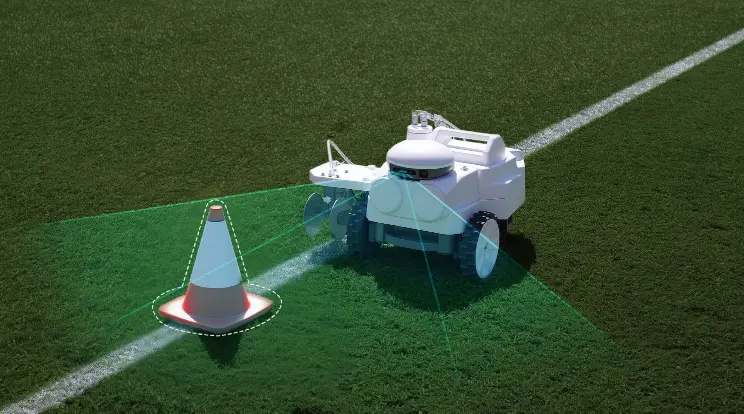

Vision-Based
Object Avoidance
GPS Anti-Theft

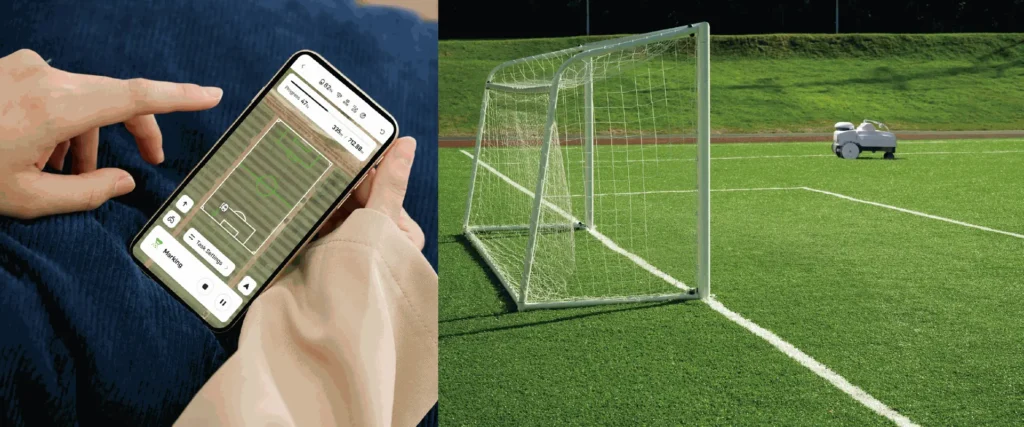

Real-Time App Monitoring
& Control

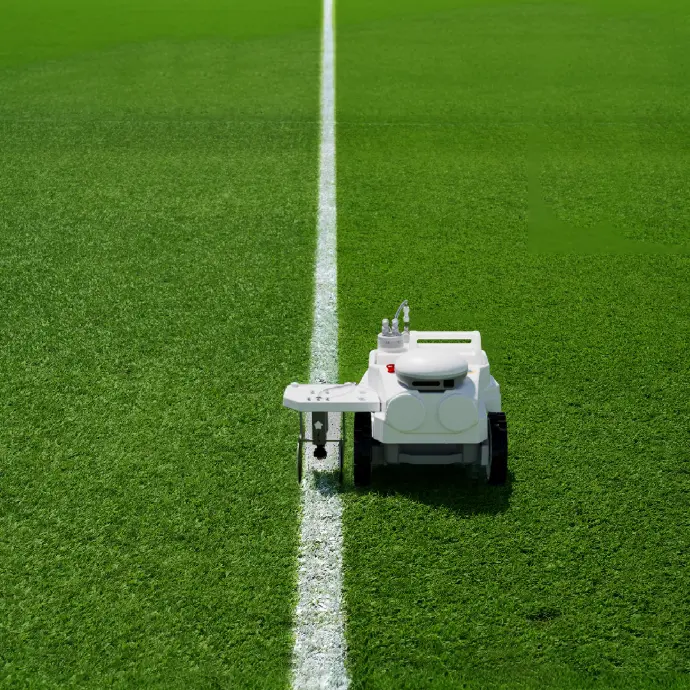

FJD PaintMaster™ Mini is a compact, smart line marking robot with centimeter accuracy, remote mapping, and autonomous operation—saving time and labor for sports field managers seeking precision with minimal effort.

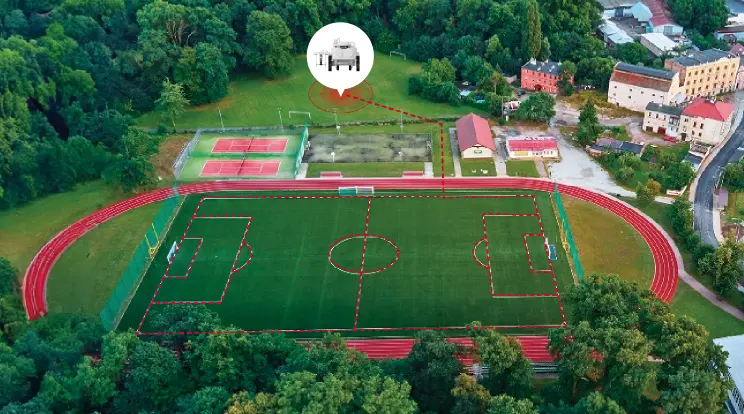

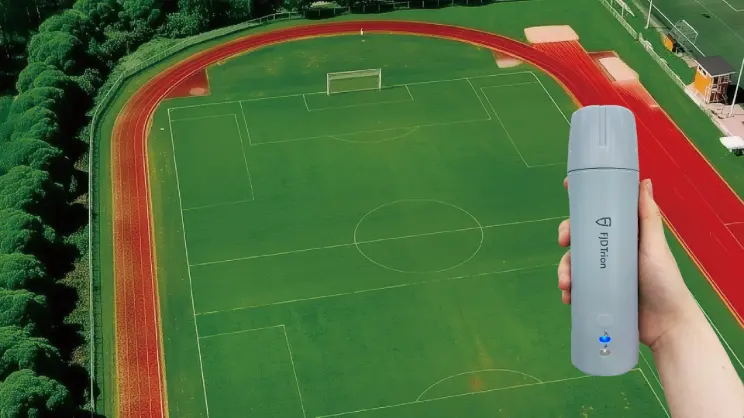

Industrial-grade RTK and flexible signal options ensure precise, stable line marking across diverse field conditions.
With the FJD Line Marking Simulator, users can rehearse marking paths virtually before execution, verifying results in advance to reduce errors and save time. Whether beginners or professionals, anyone can quickly master the marking process, improving efficiency and accuracy.
Accurate Planning
Virtually preview and validate layouts before execution to ensure first-time accuracy and raise professional standards.
Lower Costs
Cut paint and trials, reduce material and maintenance, save over 90% of labor.
Save Time
Finish marking in minutes, minimize on-site adjustments, free time for more productive work.
On-Line Accuracy
Detect line offsets or overlaps in real time, correct issues early, and ensure consistent, error-free markings.
Achieve perfect line marking with smart driven accuracy—every time. Swap batteries in one click and keep working non-stop, all day long. Free up your time to focus on what truly matters.

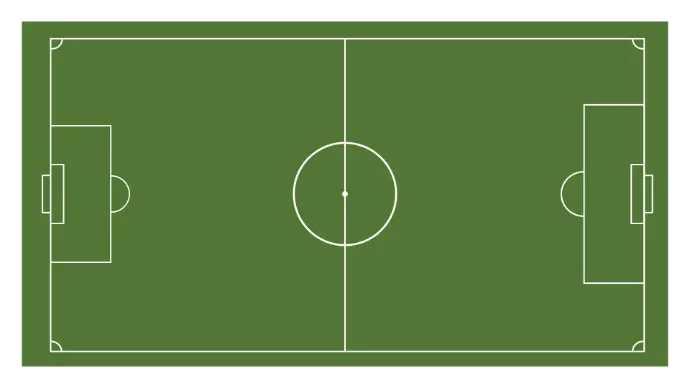

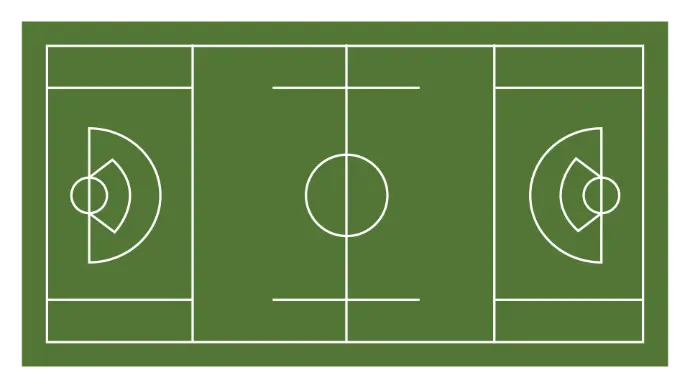

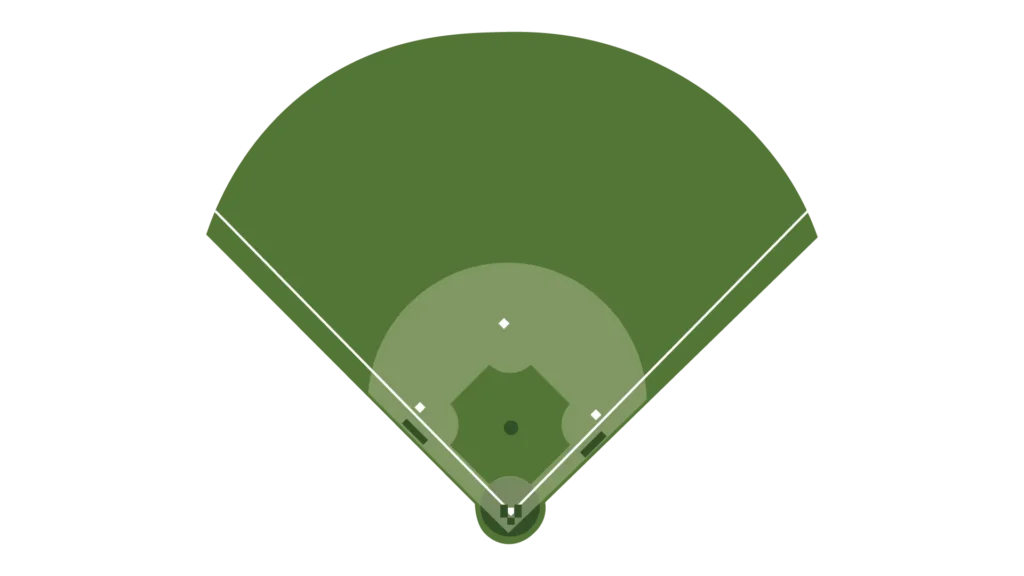

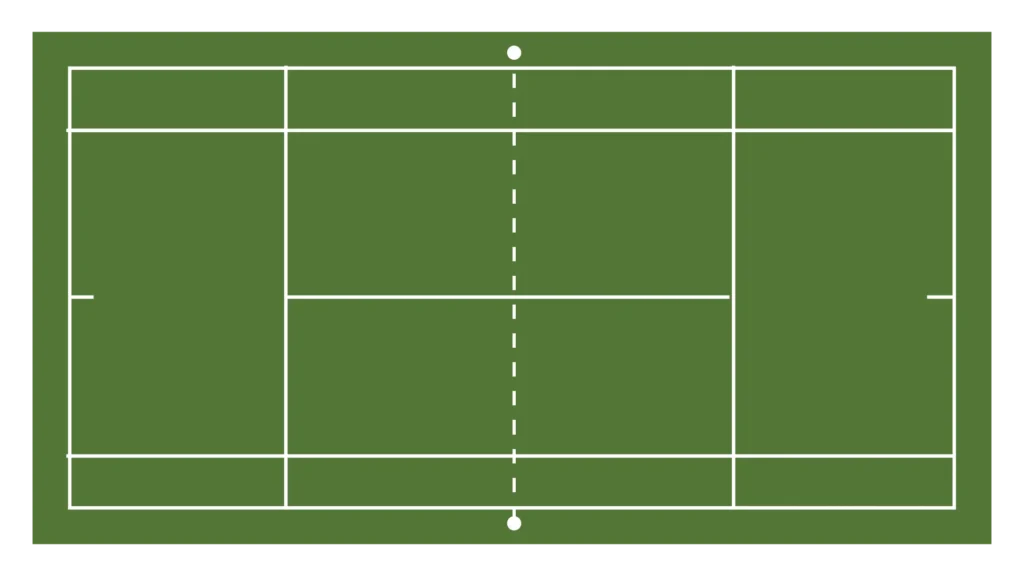

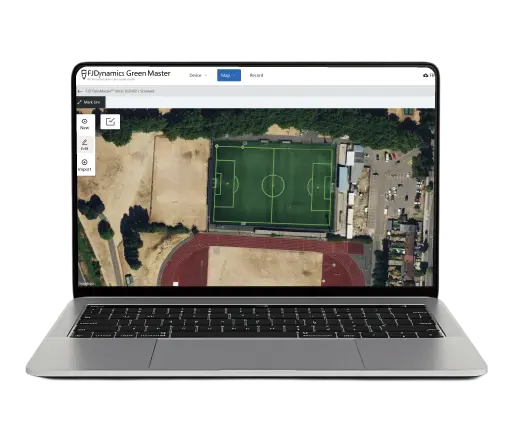

Support custom map designs as needed. Fleet management enables multiple robots to work across several fields at the same time for increased efficiency. You can also check progress and control robots remotely via the app without being on-site
| Specifications | |||
|---|---|---|---|
|
Weight (Excluding Paint)
|
21.85 kg
|
||
|
Dimensions
|
656x655x453 mm / 25.83×25.78×17.83 in.
|
||
|
Marking Speed
|
2 km/h
|
||
|
Line Width Range
|
5-12 cm
|
||
|
Paint Container
|
8L
|
||
|
Nozzle Height
|
3-8 cm
|
||
|
Standard Battery Capacity
|
190 Wh (2*95 Wh)
|
||
|
Battery as Power Bank
|
●
|
||
|
Fast Battery Swapping
|
●
|
||
|
Laser Kit
|
–
|
||
|
Battery Performance
|
2h (with dual chargers)
|
||
|
Working Temperature
|
5–45 ℃
|
||
|
IP Rating
|
IPX5
|
||
| Standard Configuration | |||
|---|---|---|---|
|
Main Unit
|
●
|
||
|
Battery
|
●
|
||
|
Charger
|
●
|
||
|
Paint Bucket
|
●
|
||
|
Tablet
|
○
|
||
|
Base Station
|
○
|
||
|
Handheld Point Marker
|
○
|
||
|
Independent Anti-Theft Module
|
○
|
||
